You are all searching： Aluminum profile shell
Description: Suitable
for indoor and outdoor electrical, communications, fire protection facilities,
steel smelting, petrochemical, electronics, electric power, railway,
construction sites, mines, mining sites, airports, hotels, large factories,
ships, dock equipment, sewage treatment facilities,Environmental facilities and
other instruments. All are made from new ABS / PC raw materials, without any
recycled materials. The mold can be reopened according to customer
requirements.
Service Hotline:0755-82579946 / 82579948
Specification:

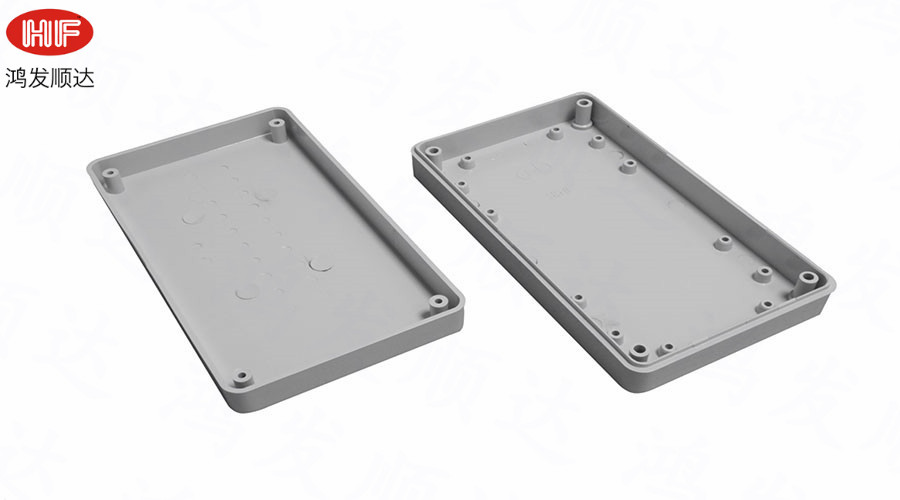

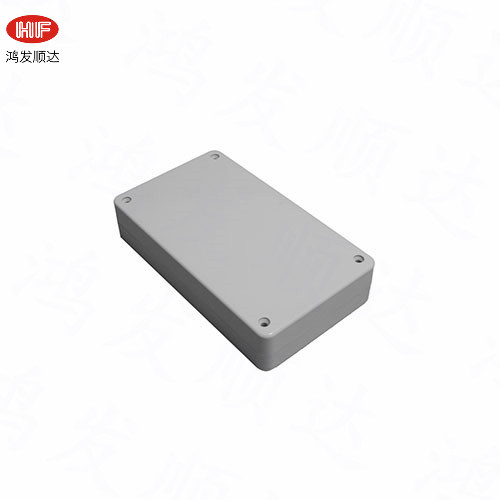

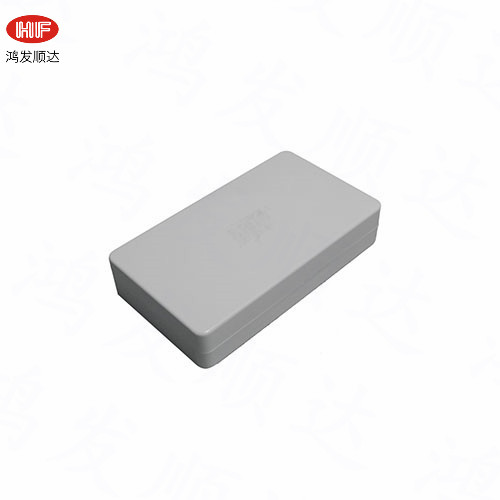

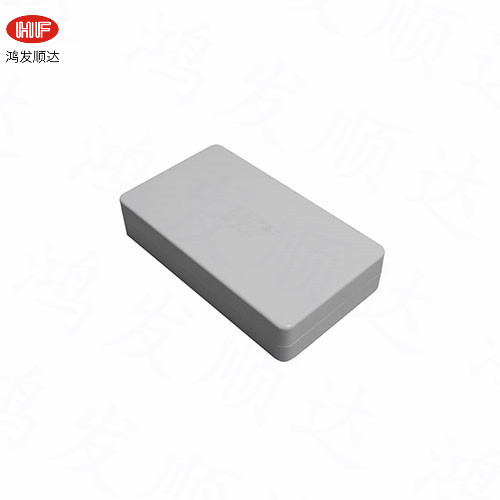

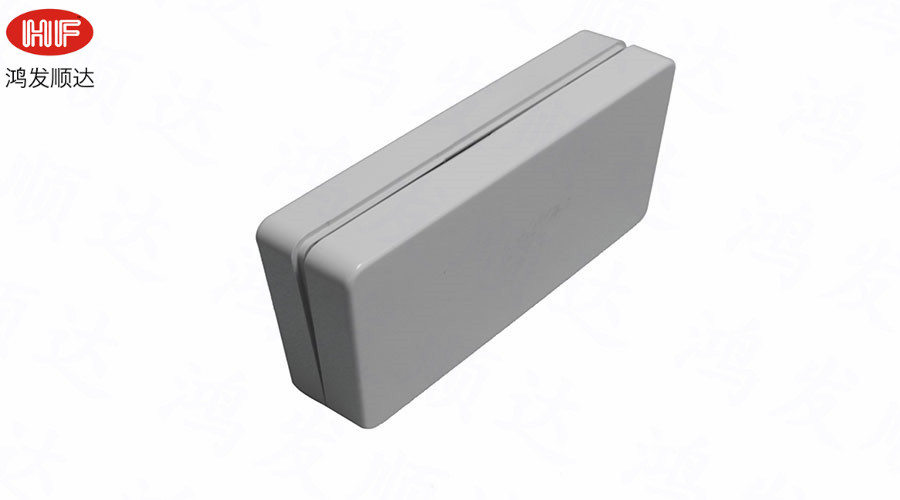

【Model】: HF-N-75
【Material】: ABS/PC plastic etc.

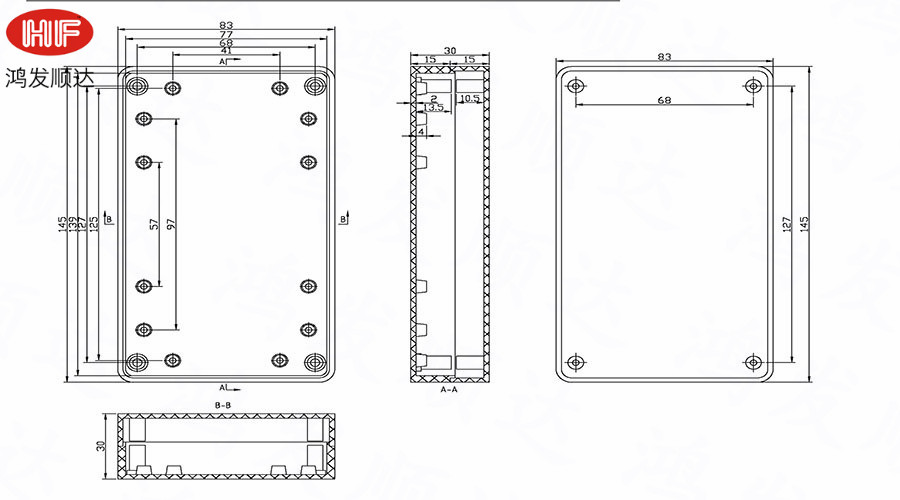

【Size】: 145*83*30mm
【Processing】: Any hole processing can be performed according to customer requirements
【Color】: Customized as requested
【Surface Treatment】: Powder Coating,Painting and so on.
HF-N-1 118*54*30mm
HF-N-2 90*58*22mm
HF-N-3 80*50*20mm
HF-N-4 69*42*17mm
HF-N-5 68*40*20mm
HF-N-6 58*35*15mm
HF-N-7 49*28*14mm
HF-N-8 100*60*25mm
HF-N-9 85*50*21mm
HF-N-10 70*45*29mm
HF-N-11 70*45*18mm
HF-N-12 90*70*28mm
HF-N-13 83*58*22mm
HF-N-14 80*50*32mm
HF-N-15 80*50*32mm
HF-N-16 90*65*35mm
HF-N-18 73*43*23mm
HF-N-19 50*43*27mm
HF-N-20 40*37*26mm
HF-N-21 125*80*35mm
HF-N-22 140*82*38mm
HF-N-23 45*36*18mm
HF-N-24 91*51*23mm
HF-N-25 61*36*25mm
HF-N-26 71*41*23mm
HF-N-27 58*56*28mm
HF-N-28 92*51*43mm
HF-N-32 92*58*32mm
HF-N-34 60*45*25mm
HF-N-35 95*75*43mm
HF-N-38 85*80*24mm
HF-N-40 128*82*38mm
HF-N-41 53*38*25mm
HF-N-42 60*45*28mm
HF-N-43 79*53*33mm
HF-N-48 85*38*22mm
HF-N-49 82*57*35mm
HF-N-50 100*63*35mm
HF-N-56 82*52*35mm
HF-N-57 102*65*50mm
HF-N-58 127*81*60mm
HF-N-59 158*101*70mm
HF-N-60 197*126*80mm
HF-N-61 215*156*26mm
HF-N-62 106*66*32mm
HF-N-63 131*82*40mm
HF-N-64 164*102*45mm
HF-N-67 124*70*30mm
HF-N-68 124*70*41mm
HF-N-69 124*70*52mm
HF-N-70 110*55*25mm
HF-N-71 82*64*25mm
HF-N-72 40*30*15mm
HF-N-73 90*75*25mm
HF-N-74 65*43*17mm
HF-N-75 145*83*30mm
HF-N-77 95*58*22mm
HF-N-80 70*45*35mm
HF-N-81 80*56*40mm
HF-N-82 47*33*16mm
HF-N-85 80*50*25mm
HF-N-87 115*70*45mm
HF-N-89 76*60*28mm
HF-N-90 70*46*29mm
HF-N-92 130*68*43mm
HF-N-93 100*64*47mm
HF-N-94 85*52*30mm
HF-N-95 140*100*35mm
HF-N-98 116*70*23mm
HF-N-99 120*75*25mm
HF-N-100 135*90*25mm
HF-N-102 125*72*25mm
HF-N-110 90*60*25mm
HF-N-113 60*45*27mm
HF-N-114 67*36*14mm
HF-N-119 48*26*15mm
HF-N-120 55*35*15mm
HF-N-121 40*20*11mm
HF-N-122 76*56*29mm
HF-N-123 100*80*29mm
HF-N-125 128*80*40mm
HF-N-129 173*144*40mm
HF-N-130 230*142*64mm
HF-N-131 200*124*55mm
HF-N-132 170*105*48mm
HF-N-133 150*90*42mm
HF-N-134 130*80*37mm
HF-N-135 100*50*25mm
HF-N-143 138*92*24mm
HF-N-144 40*18*9mm
HF-N-145 29*16*7.5mm
HF-N-150 55*35*20mm
HF-N-152 80*50*25mm
HF-N-154 50*35*22mm
HF-N-159 43*22*10mm
HF-N-160 110*70*38mm
HF-N-161 210*139*55mm
HF-N-162 168*107*42mm
HF-N-163 130*89*31mm
HF-N-164 80*50*19mm
HF-N-165 95*55*23mm
HF-N-166 110*65*28mm
HF-N-167 155*80*45mm
HF-N-168 155*80*45mm
HF-N-169 145*85*40mm
HF-N-170 145*85*40mm
HF-N-171 120*60*35mm
HF-N-172 120*60*35mm
HF-N-173 110*70*40mm
HF-N-174 110*70*40mm
HF-N-175 105*65*40mm
HF-N-176 105*65*40mm
HF-N-177 85*55*35mm
HF-N-178 85*55*35mm
HF-N-179 80*75*45mm
HF-N-180 80*75*45mm
HF-N-181 70*50*40mm
HF-N-182 70*50*41mm
HF-N-183 36*36*15mm
HF-N-184 36*36*20mm
HF-N-185 41*41*15mm
HF-N-186 41*41*20mm
HF-N-187 51*36*15mm
HF-N-188 51*36*20mm
HF-N-189 51*51*15mm
HF-N-190 51*51*20mm
HF-N-191 61*36*15mm
HF-N-192 61*36*20mm
HF-N-193 81*41*15mm
HF-N-194 81*41*20mm
HF-N-195 36*36*15mm
HF-N-196 36*36*20mm
HF-N-197 41*41*15mm
HF-N-198 41*41*20mm
HF-N-199 51*36*15mm
HF-N-200 51*36*20mm
HF-N-201 51*51*15mm
HF-N-203 61*36*15mm
HF-N-204 61*36*20mm
HF-N-205 81*41*15mm
HF-N-206 81*41*20mm
HF-N-211 69*40*23mm
HF-N-215 108*66*26.5mm
HF-N-216 103.5*99.5*42.8mm
